There are lots of Linux users who don’t care how the kernel works, but only want to use it. That is a tribute to how good Linux is.

— Linus Torvalds

Overview

All programs running on Linux use system calls. System calls are the interface between your application and the Linux kernel. If you need a service provided by the Kernel, you need a system call. You use them every time you read a file on disk (open, read, close), allocate a new block of memory (sbrk, mmap), communicate with another process (kill, listen), start a new process (fork, wait), or simply when your program stops (exit).

The command man 2 syscalls lists all system calls:

$ apt install manpages-dev
$ man 2 syscalls
...
System call                Kernel        Notes
───────────────────────────────────────────────────────────────────────

_llseek(2)                 1.2
_newselect(2)              2.0
_sysctl(2)                 2.0
accept(2)                  2.0           See notes on socketcall(2)
accept4(2)                 2.6.28
access(2)                  1.0
acct(2)                    1.0
add_key(2)                 2.6.10
adjtimex(2)                1.0
alarm(2)                   1.0
alloc_hugepages(2)         2.5.36        Removed in 2.5.44
arc_gettls(2)              3.9           ARC only
arc_settls(2)              3.9           ARC only
arc_usr_cmpxchg(2)         4.9           ARC only
arch_prctl(2)              2.6           x86_64, x86 since 4.12
atomic_barrier(2)          2.6.34        m68k only
atomic_cmpxchg_32(2)       2.6.34        m68k only
...

This command returns 467 different system calls on my Ubuntu 20.04 server. Not all of them are actively in use. Some system calls are deprecated and only kept to preserve compatibility with old binaries.

System calls are unavoidable, but in practice, we rarely interact directly with them.

Library Function vs System Call

A library function is simply one of the functions that constitute the standard C library.

Many library functions don’t use system calls (e.g., string-manipulation functions like strcmp()). On the other hand, some library functions are layered on top of system calls. For example, the fopen() library function uses the open system call to actually open a file. Often, library functions are designed to provide a more user-friendly interface than the underlying system call. For example, the printf() library function provides output formatting and data buffering, whereas the write system call just outputs a block of bytes. Sometimes, library functions and system calls have the same name. For example, man 2 exit prints the manual for the exit system call and man 3 exit prints the manual for the exit() library function.

System calls are implemented by your kernel and are an integral part of Linux. On the contrary, different implementations of the standard C library exist. The most commonly installed is the GNU C library (glibc), and is the one we will cover in this article.

For example, in C, the PID of your program is accessible using the function getpid():

#include <stdio.h>
#include <sys/types.h>
#include <unistd.h>

int main(void)
{
    pid_t pid;
    pid = getpid();
    printf("PID=%d\n", pid);
    return 0;
}

¹

The getpid() library function is defined in unistd.h and returns the PID of the current process using the getpid system call.

Retrieving the PID of the current process is one of the most basic system calls. It simply returns the value stored in memory inside a data structure maintained by the kernel. It takes no arguments. It always succeeds. But calling getpid() is not like calling any other function.

Here is a minimal benchmark illustrating this difference:

#include <stdio.h>
#include <sys/types.h>
#include <unistd.h>
#include <time.h>

pid_t getdummyid() {
  return 1;
}

int main(void)
{
    pid_t pid;

  clock_t start_time;
    double elapsed_time;

    start_time = clock();
    for (int i=0; i<10000000; i++) {
        pid = getdummyid();
    }
    elapsed_time = (double)(clock() - start_time) / CLOCKS_PER_SEC;
    printf("Done getdummyid in %f seconds\n", elapsed_time);

    start_time = clock();
    for (int i=0; i<10000000; i++) {
        pid = getpid();
    }
  elapsed_time = (double)(clock() - start_time) / CLOCKS_PER_SEC;
    printf("Done getpid     in %f seconds\n", elapsed_time);



  return 0;
}

¹

We defined a basic function returning an integer literal. Retrieving the PID of a process doesn’t interact with a hardware device. Simply returning this integer is relatively close to reading this value from a data structure kept in memory.

²

We call the two functions 1,000,000 times and measure how long it takes.

Here are the results on my laptop using Ubuntu 20.04 in a virtual server:

$ sudo gcc -o benchmark benchmark.c
$ sudo ./benchmark
Done getdummyid in 0.022424 seconds
Done getpid     in 4.141334 seconds

Calling a system call is, on this example, 200 times slower than calling a simple function. Indeed, a system call is not a simple function call. When you call the function getpid(), you use a wrapper implemented by glibc hiding the actual logic to execute a system call. Under the hood, this wrapper function does a lot of work:

• Step 1: The library function copies its arguments into registers. It also copies a number identifying the system call into a specific register. The library function then forces the processor to switch from user mode to kernel mode.
• Step 2: The kernel executes the system call:
  • The kernel saves the state of the CPU (the register values).
  • The kernel checks the validity of the system call number.
  • The kernel invokes the right system call routine based on this number. This routine checks the validity of arguments and executes the logic of the system call.
  • The kernel restores the state of the CPU and places the return value and the possible error in specific registers.
• Step 3: The library function checks for an error and set the global variable errno. The library returns to the caller.

That’s a lot of work, for sure, and provides the beginning of an explanation for why system calls are more expensive.

Step By Step

It’s time to show the code behind system calls. We will use glibc (v2.33) and Linux kernel (v5.13) to illustrate the lines of code running between the user and kernel modes. We will continue with the getpid example.

User Mode (glibc)

The Objective

For this first step, the objective is to execute the system call getpid from the viewpoint of a user process. Concretely, we will have to specify values in specific CPU registers before calling a specific CPU instruction, and as different CPU architectures have different registers and different instructions set, the logic will be, of course, different 🙂 (based on your computer architecture).

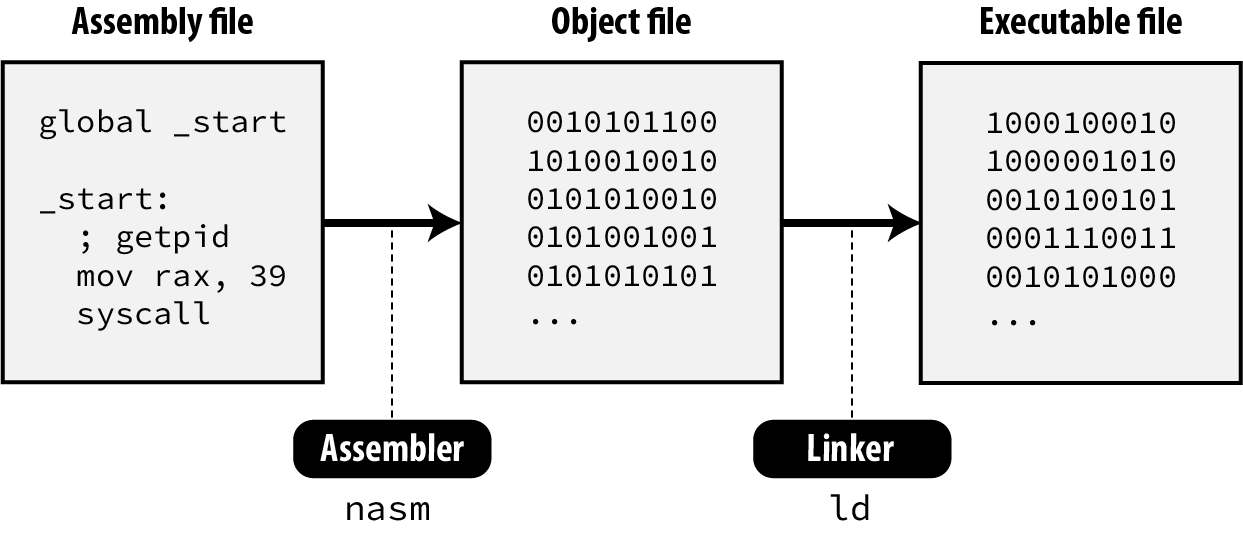

For example, here is the assembly code to execute the getpid system call for the amd64 architecture:

mov rax, 39
syscall

Here is the same code for the arm64 architecture:

mov  r8, 172
svc

These two instructions are enough to request the kernel to returns the PID of the current process.

The Code

Glibc implements the getpid() library function and many other similar functions to make accessible system calls in a friendly manner to C programs. Calling the getpid system call is not so different from calling any other system call. The number of arguments varies, and some calls do not return errors, but the logic is similar. Basically, glibc must put values in registers and call an instruction to delegate to the kernel. Therefore, to avoid code duplication, glibc adopts a declarative approach to implement these library functions.

For example, if you look inside the code source, you will only find the declaration of the function getpid():

extern __pid_t __getpid (void);

You will not find the implementation directly, at least not in an obvious manner.

System calls are defined in various syscalls.list files reflecting the differences between machine architectures. These files are then merged in a precise order. The format looks like this:

# File name Caller  Syscall name    Args    Strong name Weak names
...
execve  - execve  i:spp __execve  execve
flock   - flock   i:ii  __flock    flock
getpid  - getpid  Ei:   __getpid  getpid
...

These files contain the metadata required to generate thin assembly wrappers around the corresponding system calls. For example, getpid arguments are defined as Ei:, which means:

• E → errno is not set by the call (i.e., the system call never fails).
• i → returns a scalar value (i.e., a integer representing the pid_t)
• : → separates the return context from the arguments. As there are no letters after it, it means the system call takes no argument.

These files are then read by the script make-syscalls.sh, launched by the Makefile when building glibc. This script outputs one rule for every system call:

#### CALL=getpid NUMBER=39 ARGS=i: SOURCE=-
ifeq (,$(filter getpid,$(unix-syscalls)))
unix-syscalls += getpid
$(foreach p,$(sysd-rules-targets), \
$(foreach o,$(object-suffixes),$(objpfx)$(patsubst %,$p,getpid)$o)): \
                $(..)sysdeps/unix/make-syscalls.sh
        $(make-target-directory)
        (echo '#define SYSCALL_NAME getpid'; \
         echo '#define SYSCALL_NARGS 0'; \
         echo '#define SYSCALL_ULONG_ARG_1 0'; \
         echo '#define SYSCALL_ULONG_ARG_2 0'; \
         echo '#define SYSCALL_SYMBOL __getpid'; \
         echo '#define SYSCALL_NOERRNO 1'; \
         echo '#define SYSCALL_ERRVAL 0'; \
         echo '#include <syscall-template.S>'; \
         echo 'weak_alias (__getpid, getpid)'; \
         echo 'hidden_weak (getpid)'; \
        ) | $(compile-syscall) \
    $(foreach p,$(patsubst %getpid,%,$(basename $(@F))),$($(p)CPPFLAGS))
endif

Here is an example of command when all of the pieces are put together:

(echo '#define SYSCALL_NAME getpid'; \
 echo '#define SYSCALL_NARGS 0'; \
 echo '#define SYSCALL_ULONG_ARG_1 0'; \
 echo '#define SYSCALL_ULONG_ARG_2 0'; \
 echo '#define SYSCALL_SYMBOL __getpid'; \
 echo '#define SYSCALL_NOERRNO 1'; \
 echo '#define SYSCALL_ERRVAL 0'; \
 echo '#include <syscall-template.S>'; \
 echo 'weak_alias (__getpid, getpid)'; \
 echo 'hidden_weak (getpid)'; \
) | /usr/bin/gcc -c  -I../include \
 -I$HOME/glibc/build/x86_64-linux-gnu/getpid \
 -I$HOME/glibc/build/x86_64-linux-gnu \
 -I../sysdeps/unix/sysv/linux/x86_64/64 \
 -I../sysdeps/unix/sysv/linux/x86_64 \
 -I../sysdeps/unix/sysv/linux/x86 \
 -I../sysdeps/x86/nptl \
 -I../sysdeps/unix/sysv/linux/wordsize-64 \
 -I../sysdeps/x86_64/nptl \
 -I../sysdeps/unix/sysv/linux/include \
 -I../sysdeps/unix/sysv/linux \
 -I../sysdeps/nptl \
 -I../sysdeps/pthread \
 -I../sysdeps/gnu \
 -I../sysdeps/unix/inet \
 -I../sysdeps/unix/sysv \
 -I../sysdeps/unix/x86_64 \
 -I../sysdeps/unix \
 -I../sysdeps/posix \
 -I../sysdeps/x86_64/64 \
 -I../sysdeps/x86_64/fpu/multiarch \
 -I../sysdeps/x86_64/fpu \
 -I../sysdeps/x86/fpu/include \
 -I../sysdeps/x86/fpu \
 -I../sysdeps/x86_64/multiarch \
 -I../sysdeps/x86_64  -I../sysdeps/x86 \
 -I../sysdeps/ieee754/float128 \
 -I../sysdeps/ieee754/ldbl-96/include \
 -I../sysdeps/ieee754/ldbl-96 \
 -I../sysdeps/ieee754/dbl-64/wordsize-64 \
 -I../sysdeps/ieee754/dbl-64 \
 -I../sysdeps/ieee754/flt-32 \
 -I../sysdeps/wordsize-64 \
 -I../sysdeps/ieee754 \
 -I../sysdeps/generic \
 -I.. -I../libio -I. \
 -D_LIBC_REENTRANT -include $HOME/glibc/build/libc-modules.h \
 -DMODULE_NAME=libc -include ../include/libc-symbols.h \
 -DPIC -DSHARED \
 -DTOP_NAMESPACE=glibc \
 -DASSEMBLER  \
 -g -Werror=undef -Wa,--noexecstack \
 -o $HOME/glibc/build/poxis/getpid.os -x assembler-with-cpp - \
 -MD -MP -MF $HOME/glibc/build/posix/getpid.os.dt -MT \
 $HOME/glibc/build/posix/getpid.os

The command compiles a C snippet from stdin using many directories containing header files, in particular, files named sysdep.h. These files declare macros representing the real assembly code for all supported architectures. For example:

/* The Linux/x86-64 kernel expects the system call parameters in
   registers according to the following table:

    syscall number  rax
    arg 1    rdi
    arg 2    rsi
    arg 3    rdx
    arg 4    r10
    arg 5    r8
    arg 6    r9
*/

#undef INTERNAL_SYSCALL
#define INTERNAL_SYSCALL(name, nr, args...)              \
  internal_syscall##nr (SYS_ify (name), args)

#undef internal_syscall0
#define internal_syscall0(number, dummy...)              \
({                                                       \
    unsigned long int resultvar;                         \
    asm volatile (                                       \
    "syscall\n\t"                                        \
    : "=a" (resultvar)                                   \
    : "0" (number)                                       \
    : "memory", REGISTERS_CLOBBERED_BY_SYSCALL);         \
    (long int) resultvar;                                \
})

#undef internal_syscall1
#define internal_syscall1(number, arg1)                  \
({                                                       \
    unsigned long int resultvar;                         \
    TYPEFY (arg1, __arg1) = ARGIFY (arg1);               \
    register TYPEFY (arg1, _a1) asm ("rdi") = __arg1;    \
    asm volatile (                                       \
    "syscall\n\t"                                        \
    : "=a" (resultvar)                                   \
    : "0" (number), "r" (_a1)                            \
    : "memory", REGISTERS_CLOBBERED_BY_SYSCALL);         \
    (long int) resultvar;                                \
})

...

The result of the previous rule command is an object file. Let’s inspect its content:

$ objdump -ldr posix/getpid.o

posix/getpid.o:     file format elf64-x86-64


Disassembly of section .text:

0000000000000000 <__getpid>:
__getpid():
/glibc/posix/../sysdeps/unix/syscall-template.S:91
   0:  f3 0f 1e fa            endbr64
   4:  b8 27 00 00 00         mov    $0x27,%eax
   9:  0f 05                  syscall
/glibc/posix/../sysdeps/unix/syscall-template.S:93
   b:  c3                     retq

To sum up, when we are calling the getpid() library function, the alias __getpid() is really called. This function is implemented in assembly language and executes the same instructions we presented before.

In practice, not all system calls can be generated like this. A prior version of the getpid() library function used a cache to limit system calls since the PID of a process never changes. This cache was removed by this commit, but if we move back in Git history, we can have a look at a different technique used by glibc to implement library functions.

#include <unistd.h>
#include <tls.h>
#include <sysdep.h>


static inline __attribute__((always_inline)) pid_t really_getpid (pid_t oldval);

static inline __attribute__((always_inline)) pid_t
really_getpid (pid_t oldval)
{
  if (__glibc_likely (oldval == 0))
    {
      pid_t selftid = THREAD_GETMEM (THREAD_SELF, tid);
      if (__glibc_likely (selftid != 0))
        return selftid;
    }

  INTERNAL_SYSCALL_DECL (err);
  pid_t result = INTERNAL_SYSCALL (getpid, err, 0);

  /* We do not set the PID field in the TID here since we might be
     called from a signal handler while the thread executes fork.  */
  if (oldval == 0)
    THREAD_SETMEM (THREAD_SELF, tid, result);
  return result;
}

pid_t
__getpid (void)
{
  pid_t result = THREAD_GETMEM (THREAD_SELF, pid);
  if (__glibc_unlikely (result <= 0))
    result = really_getpid (result);
  return result;
}

libc_hidden_def (__getpid)
weak_alias (__getpid, getpid)
libc_hidden_def (getpid)

¹

The function __getpid() is implemented as a C function.

²

The code checks for the pid in the thread-local memory area to determine if the function has already been called.

³

If the cache is empty, the code delegates to really_getpid() that checks the cache again before calling the macro INTERNAL_SYSCALL we have just covered before.

Of course, When a file like getpid.c is present, the script make-syscalls.sh does not override it:

#### CALL=getpid NUMBER=39 ARGS=Ei: SOURCE=sysdeps/unix/sysv/linux/getpid.c

¹

No rule is generated.

The code will simply be compiled with the rest of the glibc source code, reusing the same macros as the current implementation, which means the code always ends up with the syscall instruction to give control to the kernel.

Kernel Mode (Linux)

The Objective

The user process has just requested a service from the kernel. It filled the registers and called a special instruction to jump to a different location. Enter the kernel.

For this second step, the objective is for the kernel to register a procedure at this location. This procedure reads the system call number and looks at the table of system calls to find the address of the kernel function to call. Then after this function returns, it does a few checks and then returns to the user process.

The Code

First, we will look at the implementation of the getpid() system call.

Implementing a System Call

The main entry point for the getpid system call is called sys_getpid(), but you would not find the function declaration as such. System call functions are defined using the SYSCALL_DEFINEn() macro rather than explicitly, where n indicates the number of arguments. This macro takes the system call name followed by the (type, name) pairs for the parameters as arguments. The motivation is to make metadata available for other tools like tracing.

Here is the definition of the getpid system call :

/**
 * sys_getpid - return the thread group id of the current process
 *
 * Note, despite the name, this returns the tgid not the pid.  The tgid and
 * the pid are identical unless CLONE_THREAD was specified on clone() in
 * which case the tgid is the same in all threads of the same group.
 *
 * This is SMP safe as current->tgid does not change.
 */
SYSCALL_DEFINE0(getpid)
{
  return task_tgid_vnr(current);
}

¹

The code uses the current pointer representing the current task, which is issuing the syscall. The PID is then extracted from this struct. We will not cover it further.

This entry point also needs a corresponding function prototype in the reference file include/linux/syscalls.h. This prototype is marked as asmlinkage to match the way that system calls are invoked:

/* kernel/sys.c */
asmlinkage long sys_getpid(void);

Finally, the system call must be registered in the system call table, so that the kernel can found it from its number.

Most architectures share a generic system call table:

/* kernel/sys.c */
#define __NR_getpid 172
__SYSCALL(__NR_getpid, sys_getpid)

But some architectures (e.g. x86) have their own architecture-specific system call tables. For amd64, the system call table looks like:

#
# 64-bit system call numbers and entry vectors
#
# The format is:
# <number> <abi> <name> <entry point>
...
39  common  getpid      sys_getpid
...

¹

We find again the number 39 representing the getpid system call on amd64.

That’s pretty much all the steps required when adding a new system call in Linux.

Now, we must look at the glue between the syscall CPU instruction and the system call function we have just presented.

Initializing the System Call Entry

On amd64, the instruction syscall put the address present in the register IA32_LSTAR into the register RIP, the instruction pointer. After this step, the handler at that location will be executed in a CPU privileged mode. It means that the kernel needs to put the system call entry address into the IA32_LSTAR register during its initialization.

; getpid (x86)
mov eax, 20
int 0x80

; getpid (x86-64)
mov rax, 39
syscall

The kernel starts when the function start_kernel defined in init/main.c is called. This function installs various interrupt handlers using the function trap_init, which called cpu_init, which called syscall_init. Let’s look at the implementation of this last function (for amd64):

void syscall_init(void)
{
  wrmsr(MSR_STAR, 0, (__USER32_CS << 16) | __KERNEL_CS);
  wrmsrl(MSR_LSTAR, (unsigned long)entry_SYSCALL_64);
  ...
}

¹

MSR_* are Model-specific Register and can only be written by the privileged CPU instruction wrmsr. This first line is low-level code to ensure that we return to user code with the related privilege.

²

entry_SYSCALL_64 is the system call entry. We store the address of this function.

Now that the system call entry is ready, we are ready too to see what happens when the syscall instruction is called, but first, we still have to introduce the system call table.

Initializing the System Calls Table

Any system call will trigger the execution of the system call entry we have just configured. This function determines which system call routine to execute by looking into the system call table for the system call number.

This table is represented by the sys_call_table array in the Linux kernel:

asmlinkage const sys_call_ptr_t sys_call_table[__NR_syscall_max+1] = {
  [0 ... __NR_syscall_max] = &__x64_sys_ni_syscall,
  #include <asm/syscalls_64.h>
};

¹

All elements point initially to the sys_ni_syscall function, which is a fallback function simply returning -ENOSYS (Function not implemented).

²

The header file asm/syscalls_64.h is generated dynamically from the list of system calls on your system and overrides the default handler for all defined system calls.

This asm/syscalls_64.h file is generated by the script arch/x86/entry/syscalls/syscalltbl.sh and the result looks like:

__SYSCALL_COMMON(0, sys_read, sys_read)
__SYSCALL_COMMON(1, sys_write, sys_write)
...
__SYSCALL_COMMON(39, sys_getpid, sys_getpid)
...

If we evaluate the macros, our system call table initialization looks like this:

asmlinkage const sys_call_ptr_t sys_call_table[__NR_syscall_max+1] = {
  [0 ... __NR_syscall_max] = &__x64_sys_ni_syscall,
  [0] = sys_read,
  [1] = sys_write,
  ...
  [39] = sys_getpid,
  ...
};

At this point, we have already configured the system call entry, and the system call table is ready for this handler to determine the system call to execute. Let’s do it.

Entering a System Call

As we have seen, the system call entry is defined by the entry_SYSCALL_64 function defined like this:

.code64
.section .entry.text, "ax"

/*
 * 64-bit SYSCALL instruction entry. Up to 6 arguments in registers.
 *
 * This is the only entry point used for 64-bit system calls.  The
 * hardware interface is reasonably well designed and the register to
 * argument mapping Linux uses fits well with the registers that are
 * available when SYSCALL is used.
 *
 * Registers on entry:
 * rax  system call number
 * rcx  return address
 * r11  saved rflags
 * rdi  arg0
 * rsi  arg1
 * rdx  arg2
 * r10  arg3
 * r8   arg4
 * r9   arg5
 *
 * Only called from user space.
 */
SYM_CODE_START(entry_SYSCALL_64)
  ...

  /* IRQs are off. */
  movq  %rax, %rdi
  movq  %rsp, %rsi
  call  do_syscall_64

  movq  RCX(%rsp), %rcx
  movq  RIP(%rsp), %r11

  cmpq  %rcx, %r11
  jne  swapgs_restore_regs_and_return_to_usermode

  ...
SYM_CODE_END(entry_SYSCALL_64)

The line that interests us is the system call execution:

call    do_syscall_64

Where the function do_syscall_64 is defined like this:

__visible noinstr void do_syscall_64(unsigned long nr, struct pt_regs *regs)
{
  nr = syscall_enter_from_user_mode(regs, nr);

  if (likely(nr < NR_syscalls)) {
    nr = array_index_nospec(nr, NR_syscalls);
    regs->ax = sys_call_table[nr](regs);
  }
  syscall_exit_to_user_mode(regs);
}

¹

Check the system call number is valid. The value of NR_syscalls is determined at compile time.

²

Clamp the index within [0..NR_syscalls].

³

Execute the function present in the system call table with the specified number.

After a system call handler returns, the system call entry restores registers, flags and pushes the return address of the user process before exiting with the sysretq instruction. Then, the user program continues where it left off. Our long journey in Linux system calls is finished.

Try It Out!

The code was tested on Ubuntu 20.04. You can recreate the same environment using a local virtual machine if you are running on a different operating system. I use Vagrant on my machine:

$ mkdir sandbox/
$ cd sandbox
$ cat > Vagrantfile << EOF
cat Vagrantfile
# -*- mode: ruby -*-
Vagrant.configure("2") do |config|
  config.vm.box = "bento/ubuntu-20.04"
end
EOF
$ vagrant up
$ vagrant ssh
vagrant@vagrant:~$ lsb_release -a
Distributor ID:  Ubuntu
Description:  Ubuntu 20.04.1 LTS
Release:  20.04
Codename:  focal

When using a virtual machine, calling a system call is no different from what we have presented. As the processors are virtual, the hypervisor is responsible for converting machine code generated to the host architecture. Several techniques exist to handle this. A naive approach is for the hypervisor to trap system calls and delegate to the guest OS using different system calls specific to this OS and its architecture.

What follows is a basic program written in Assembly for amd64 architecture and executing the system calls getpid and exit. (The second is required if you don’t want your program to crash abruptly at the end.)

section .data      ; Section containing initialised data

section .bss       ; Section containing uninitialised data

section .text      ; Section containig code

global _start      ; Linker needs this to find the entry point

_start:
  ; getpid
  mov rax, 0x27
  syscall

  ; exit
  mov rax, 60
  xor edi, edi
  syscall

What we have is still a text file with assembly language instructions. It is not a format that a computer can run. Assembly language is text (source code) that must be converted into bytes (machine code). Therefore, we need to run a few commands first:

• nasm: The assembler “assembles” the instructions to machine code bytes to create an object file.
• ld: The linker turns this object file into an executable file that the operating system can run. (As we have only one object file, the linker does almost nothing but is a mandatory step.)

Let’s create the executable:

$ nasm -f elf64 -g -F dwarf getpid.asm
$ ld -o getpid getpid.o
$ ./getpid

The program outputs nothing. We haven’t write code for that. We can solve this problem using a debugger to inspect registers but first, let’s dump some information about our object file:

$ objdump -d getpid

getpid:     file format elf64-x86-64

Disassembly of section .text:

0000000000401000 <_start>:
  401000:  b8 27 00 00 00         mov    $0x27,%eax
  401005:  0f 05                  syscall
  401007:  b8 3c 00 00 00         mov    $0x3c,%eax
  40100c:  31 ff                  xor    %edi,%edi
  40100e:  0f 05                  syscall

The result of the getpid system call will be available starting with the address 401007 in the register rax.

$ sudo gdb getpid
Reading symbols from getpid...

Let’s output some information about our file:

Symbols from "/home/vagrant/getpid".
Local exec file:
  `/home/vagrant/getpid', file type elf64-x86-64.
  Entry point: 0x401000
  0x0000000000401000 - 0x0000000000401010 is .text

¹

We retrieve the initial address 0x401000 as reported previously by the command objdump.

Let’s add a breakpoint to stop after the system call execution:

(gdb) info files
Breakpoint 1 at 0x401007: file getpid.asm, line 15.
(gdb) run
Starting program: /home/vagrant/getpid

Breakpoint 1, _start () at getpid.asm:15
15    mov eax,60

Print the value of the register rax:

rax            0xfdb               4066

In a second terminal:

root        4064  0.1  2.2  36168 22884 pts/0    S+   \_ gdb getpid
root        4066  0.0  0.0    156    16 pts/0    t        \_ /home/vagrant/getpid

The output confirms that the PID of our program is 4066. We successfully executed our first system call using assembly code!

Case Studies

Go

We will use the Go programming language and explain using code how the language makes system calls accessible to Go developers. We will still use the getpid system call for the example.

The function Getpid is implemented by the package os:

package os

import (
  "syscall"
)

func Getpid() int { return syscall.Getpid() }

The code simply delegates to the package syscall. This package contains files implementing system calls for every supported architecture. For example, the file zsyscall_linux_amd64 provides the implementation of system calls for the amd64 architecture. Other files such as zsyscall_linux_arm64 exist in the same package. Go build constraints are used to determine which file is finally included when building the binary:

//go:build linux && amd64
// +build linux,amd64

Here is the definition of Getpid for amd64 architecture:

// THIS FILE IS GENERATED BY THE COMMAND AT THE TOP; DO NOT EDIT

func Getpid() (pid int) {
  r0, _ := rawSyscallNoError(SYS_GETPID, 0, 0, 0)
  pid = int(r0)
  return
}

As visible from the code, this file was generated from the template file syscall_linux_amd64.go. Here is a snippet from this file:

...
//sysnb  Getpid() (pid int)
...

This prototype definition of the getpid system call specifies the number of arguments, if errors can be returned, and also if the current goroutine must be suspended during the execution of the system call (sys vs sysnb = suspend vs continue). The utility program mksyscall.pl present in the same package reads this template file to generate the implementations of system call wrappers like Getpid().

What remains to cover is the code behind this line included in the generated code:

r0, _ := rawSyscallNoError(SYS_GETPID, 0, 0, 0)

This function rawSyscallNoError is defined like this:

package syscall

func rawSyscallNoError(trap, a1, a2, a3 uintptr) (r1, r2 uintptr)

In Go, a function declaration may omit the body. Such a declaration provides the signature for a function implemented outside Go, such as an assembly routine.

The code belongs in the sys/unix package. This package regroups the assembly code to execute system calls. Porting Go to a new architecture/OS combination or supporting a new syscall implies changes in this package like updating the hand-written assembly files at asm_${GOOS}_${GOARCH}.s, which are parsed by the Go tooling to build the final code.

Here is the native implementation for Linux of the function rawSyscallNoError:

TEXT ·RawSyscallNoError(SB),NOSPLIT,$0-48
  MOVQ  a1+8(FP), DI
  MOVQ  a2+16(FP), SI
  MOVQ  a3+24(FP), DX
  MOVQ  $0, R10
  MOVQ  $0, R8
  MOVQ  $0, R9
  MOVQ  trap+0(FP), AX  // syscall entry
  SYSCALL
  MOVQ  AX, r1+32(FP)
  MOVQ  DX, r2+40(FP)
  RET

Concerning the getpid system call, the const SYS_GETPID is defined like this:

SYS_GETPID                 = 39

And now, the native implementation of the getpid system call:

#define SYS_getpid    39

TEXT ·getpid(SB),NOSPLIT,$0-8
  MOVL  $SYS_getpid, AX
  SYSCALL
  MOVQ  AX, ret+0(FP)
  RET

For comparison, here is the same code for the arm64 architecture:

#define SYS_getpid      172

TEXT ·getpid(SB),NOSPLIT|NOFRAME,$0-8
  MOVD  $SYS_getpid, R8
  SVC
  MOVD  R0, ret+0(FP)
  RET

That’s all. You have reviewed the standard Go code to execute a system call on Linux.

Java

Since Java 9, the process API can be used to get the current process ID.

long pid = ProcessHandle.current().pid();

¹

We grab a handle to the current process and then query the PID.

This method is implemented in the type ProcessHandlerImpl like this:

package java.lang;

/**
 * ProcessHandleImpl is the implementation of ProcessHandle.
 *
 * @see Process
 * @since 9
 */
@jdk.internal.ValueBased
final class ProcessHandleImpl implements ProcessHandle {

    static {
        long pid = getCurrentPid0();
    }

    /**
     * The pid of this ProcessHandle.
     */
    private final long pid;

    /**
     * Returns the native process ID.
     * A {@code long} is used to be able to fit the system specific binary values
     * for the process.
     *
     * @return the native process ID
     */
    @Override
    public long pid() {
        return pid;
    }

    /**
     * Return the pid of the current process.
     *
     * @return the pid of the  current process
     */
    private static native long getCurrentPid0();
}

The code delegates to the native function getCurrentPid0 implemented in C in ProcessHandleImpl_unix.c:

#include "jni.h"
#include "jni_util.h"
#include "java_lang_ProcessHandleImpl.h"
#include "java_lang_ProcessHandleImpl_Info.h"

#include "ProcessHandleImpl_unix.h"

#include <unistd.h>

/*
 * Class:     java_lang_ProcessHandleImpl
 * Method:    getCurrentPid0
 * Signature: ()J
 */
JNIEXPORT jlong JNICALL
Java_java_lang_ProcessHandleImpl_getCurrentPid0(JNIEnv *env, jclass clazz) {
    pid_t pid = getpid();
    return (jlong) pid;
}

¹

The function getpid() is defined by glibc.

As Java native methods are implemented in C, the code can reuse existing function libraries supported by glibc that we have already covered. We are back to square one. It’s time to close this blog post.

mov rax, 60

As we have seen through this article, a system call is definitively not a simple function call. A lot of code is executed to delegate the responsibility to the kernel to ensure we are privileged to run it.

System calls are essential for developers. They define the capabilities of your system. For example, the epoll system call helped Nginx to solve the C10k problem by offering a event-driven I/O model, the inotify_* system calls allows react-scripts to automatically rerun your tests when you are making a code change, the sendfile system call supports the Zero-Copy optimization used by Kafka, which is one of the main reasons explaining its performance, the ptrace system call is used by debugguers like gdb to inspect your program using breakpoints, and so on. The question is, therefore, what are you going to build using these system calls? 😉
